Xpress II
Inclined Platform Lift
The Garaventa Lift Xpress II is a cost-effective, ADA-compliant inclined platform wheelchair lift that provides economical access between two landings, featuring a space-saving foldable platform and a rack and pinion drive system.
Xpress II
Inclined Platform Lift
The Garaventa lift Xpress II inclined platform wheelchair lift is designed to provide economical access between two landings.

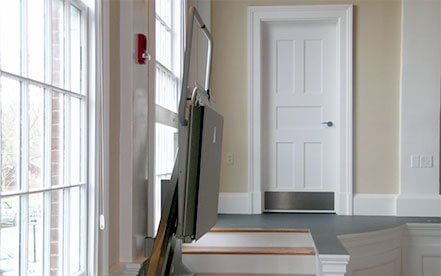

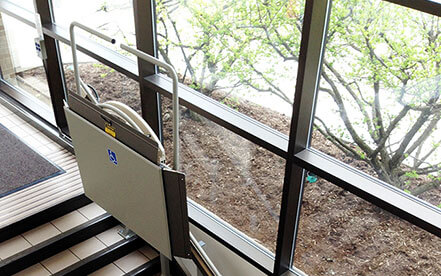

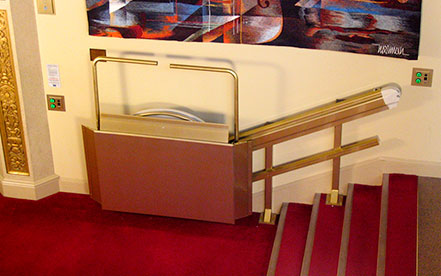

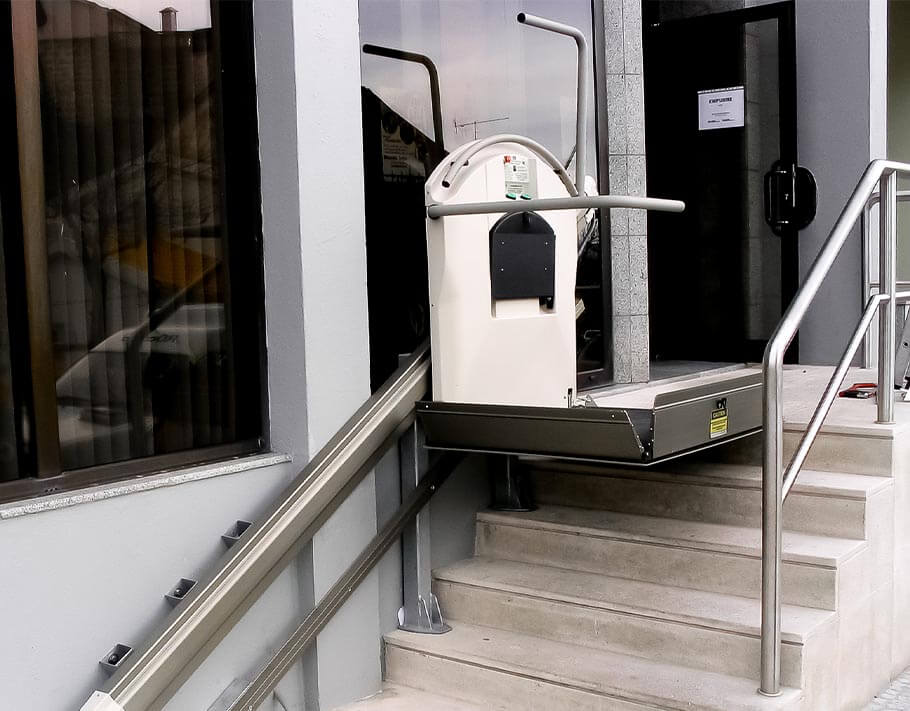

The platform travels on two rails which are secured directly to the wall or to support towers and is propelled by means of a carriage mounted rack and pinion drive system. When the platform is not in use it is folded, taking up minimal space on the stairway.
The Xpress II is cost-effective and is ADA compliant. With a variety of standard and optional features available, it can be designed to suit the needs of the user and building owner.
Low cost
Space saver
ADA Compliance
Downloads & Technical Documents
Request a quote
Cost effective solutions for all your elevator needs. That’s what’s makes Alcor Elevator stand out from the competition.
We are a Canadian elevator company that provides services for our clients in southern Ontario.
- sales@alcorelevator.com
- 1-866-460-0308
- #21-395 Anchor Rd. Hamilton, Ont. L8W 0C7
Send us a message
Fast Installation
Under Platform Obstruction Sensing
Ideal for Stage Access
Easy Grip Offset “D” Handles
Estimated working hours to install
Innovative platform
The Genesis OPAL vertical lift easily transports passengers up and down short vertical distances, for applications such as stages and porches. The platform walls, platform gate and optional automatic folding ramp travel with the platform creating a safety barrier around the passenger.
The OPAL has a weight capacity of 340kg (750lbs) and can provide access up to 1600mm (63″). Ideal for indoor and outdoor applications while providing a cost-effective accessibility solution
Under Platform Obstruction Sensing
Ideal for Stage Access
Easy Grip Offset “D” Handles
Features
- Standard Features
- Optional Features
Highlighted below are some of the many standard features available.
Capacity:
250kg (550 lbs)
Choice of Three Platform Sizes:
- 800mm x 1250mm (31 1/2″ x 49 1/4″) – ADA Compliant
- 800mm x 1000mm (31 1/2″ x 39 3/8″)
- 750mm x 900 mm (29 1/2″ x 35 1/2″)
Drive System:
The platform mounted drive system consists of a .75 H.P. motor, gearbox, pinion gear and flexible traveling cable.
Mains Power Operation:
- North America: 208 – 240VAC Single Phase on a dedicated 20-amp circuit.
- International: 208 – 240VAC Single Phase on a dedicated 16-amp circuit.
Curved Safety Arms:
Fully automatic safety arms are available to further increase the safety of the passenger.
Platform Controls:
- Constant Pressure Control Buttons – Large illuminated direction control buttons allow for independent operation of the lift.
- Keyless Platform Operation.
- Emergency Stop Button – Used to stop the lift in an emergency.
- Grabrail – Assists passenger with loading and unloading.
Emergency Manual Lowering:
These features allow the lift to be manually lowered during a power outage.
Hour Counter:
Shows the amount of time the Xpress II has been used.
Finishes:
Champagne colored anodized aluminum rails and loading ramps, with non-aluminum components of the lift finished in a durable polyester powder paint coating in fine textured Satin Grey paint.
The items li sted below are additional optional features available on the Xpress II.
Narrow Platform Sizes:
- 675mm x 1000mm (26 1/2″ x 39 3/8″)
- 725mm x 1000mm (28 1/2″ x 39 3/8″)
Platform Controls:
- Attendant Remote Control – Allows for operation of the lift independent of the platform mounted controls.
- Keyed Platform Controls – This feature restricts operation to authorized users.
- On Board Alarm with Illuminated Emergency Stop Button.

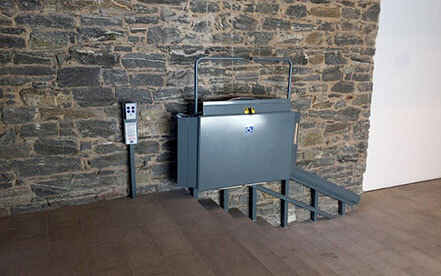

Call Station:
Call Stations can be supplied with an Attendant Call Button key-less and an Emergency Stop Button.
Folding Seat:
An additional rail can be added to the system for pedestrian use.
Side Load:
For confined lower landing areas, this feature allows the passenger to wheel onto the platform diagonally offering easier access.
Auto-Fold:
This functions allows the lift to automatically fold if left unattended for a selected period of time. This ensures the stairway is kept clear should the operator forget to fold the platform.
Platform Lock:
This locks secures the platform in the folded position protecting the lift from vandalism.
Custom Finishes:
The Xpress II can be painted any color from the RAL color chart. Optional paint finishes can even simulate brass and stainless steel effect.
Handrails:
A handrail can be mounted to the top of the upper rail section to assist pedestrians using the stairs.
Audio-Visual Alert:
When the lift is in use, a wall mounted strobe light and audible chime cautions pedestrians in the vicinity that the lift is in operation.
Emergency Battery Lowering:
During a power outage, this feature allows the platform to travel to the bottom landing.
Auxiliary Power System:
Ensures the lift will continue to operate during a power outage. This system provides one hour of operation at rated load.
Call with Platform Open:
With this option, the lift travels with the arms in the horizontal position and platform folded down only. This is used when there is limited overhead clearance.
Remote Fold:
This feature allows the platform to be folded up from any call station should the platform be left folded down.
Fire Alarm Integration Fire Service:
This feature ensures the lift will not obstruct stairway traffic during an evacuation. If the lift is in use when the alarm sounds, the lift will only allow the passenger to use the constant pressure direction button to travel to the designated landing with the emergency exit.
Vinyl cover:
Ideal for outdoor installations, the vinyl cover protects the Xpress II.
Audio Visual Alert:
When the lift is in use, a wall mounted strobe light and audible chime cautions pedestrians in the vicinity that the lift is in operation.
