Elvoron CPL
Vertical Platform Lift
The Elvoron CPL is a cost-effective vertical platform lift resembling a small elevator, designed for accessibility in commercial buildings with features like a full height cab, non-load bearing ceiling, constant pressure operation, and swing door access.
Elvoron CPL
Vertical Platform Lift
The Elvoron CPL is a vertical platform lift equipped with a full height cab and a non-load bearing ceiling. It looks and feels like a small elevator but costs much less. The Elvoron CPL is designed to provide access for people with disabilities in commercial buildings.
Simple constant pressure operation and swing door access ensure reliability and ease of operation for passengers.
Low cost
Reliable
Variety of Finishes
Custom Platform Sizes
Smooth & Quiet Ride
Full Height Cab
Downloads & Technical Documents
Request a quote
Cost effective solutions for all your elevator needs. That’s what’s makes Alcor Elevator stand out from the competition.
We are a Canadian elevator company that provides services for our clients in southern Ontario.
- sales@alcorelevator.com
- 1-866-460-0308
- #21-395 Anchor Rd. Hamilton, Ont. L8W 0C7
Send us a message
Fast Installation
Under Platform Obstruction Sensing
Ideal for Stage Access
Easy Grip Offset “D” Handles
Estimated working hours to install
Innovative platform
The Genesis OPAL vertical lift easily transports passengers up and down short vertical distances, for applications such as stages and porches. The platform walls, platform gate and optional automatic folding ramp travel with the platform creating a safety barrier around the passenger.
The OPAL has a weight capacity of 340kg (750lbs) and can provide access up to 1600mm (63″). Ideal for indoor and outdoor applications while providing a cost-effective accessibility solution
Under Platform Obstruction Sensing
Ideal for Stage Access
Easy Grip Offset “D” Handles
Features
- Standard Features
- Optional Features
The Elvoron CPL Model is equipped with many standard features, setting it apart from the competition. Some of these features are listed below.
- Available in 3 standard car sizes as well as custom sizes up to 21 square feet
- Standard Car Sizes:
- 36″ x 60″
- 42″ x 60″
- 48″ x 60″
- Available in 5 landing door configurations, including multiple door configurations.
- Wide choice of laminate and melamine car wall panel colors.
- Choice of three car and wall fixture colors.
- 1:2 Cable Hydraulic Drive.
- Quiet submersed pump and motor.
- Two speed hydraulic valve for smooth start and stop.
- Standard rated load of 750 lbs. – optional up to 1400lbs (635kg).
- Standard travel speed of 30 feet per minute.
- Travel range:
- Canada (CSA B355): 23 ft (7.0 meters).
- Other heights: contact Garaventa Lift for more information.
- Make up to 6 stops or have a total of 6 landing doors.
- Constant pressure button operation (floor selective).
- Illuminated buttons and digital floor display.
- Automatic car lighting upon passenger entry.
- Recessed ceiling lighting using low-voltage halogen fixtures.
- Full length handrail located below the car operating panel (additional handrails can be added).
- Emergency backup power system for lights, locks and door operators.
- Emergency stop and alarm.
- Floor specific emergency battery lowering system.
- Emergency manual lowering system.
- Slack/broken cable safety brake device.
- Hoistway door interlocks.
- Solid car gate with safety switch.
- UL or CSA certified components.
Elvoron CPL Model Drive
Control System

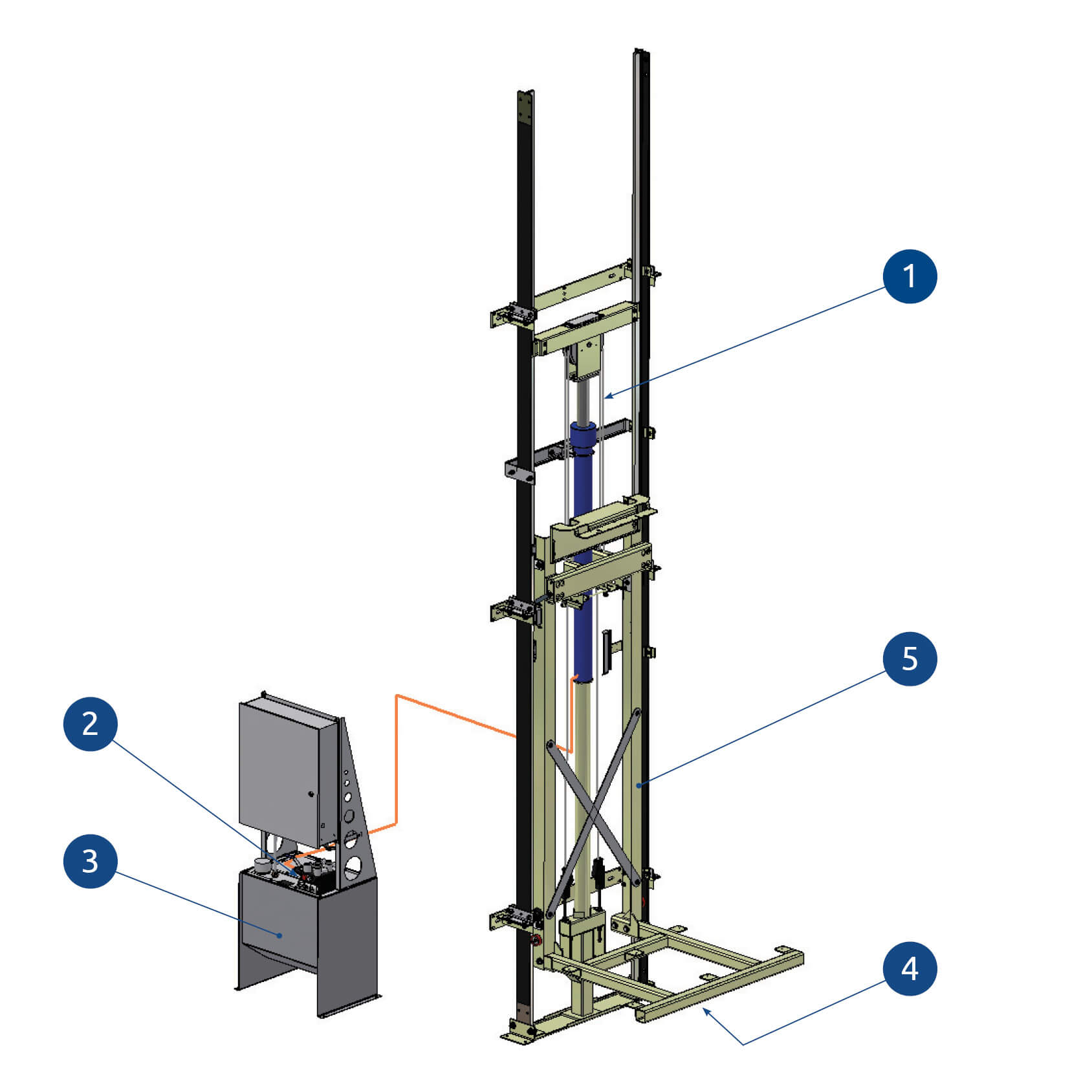

Drive System
- 1:2 Cable Hydraulic Drive
- Single stage hydraulic jack and two 3/8″ cables
- Two speed control valve for smooth start and stop
- Submersed pump and motor assembly for quiet operation
- Low oil protection circuit
- Standard capacity of 750lbs (340kgs). Up to 1,400lbs (635kgs) where permitted
- Nominal travel speed of 30 feet per minute
- Maximum floor to floor travel: 23ft (7.0m)
- Constant pressure button operation (floor selective)
Finishes for the Garaventa Lift
Elvoron CPL Model

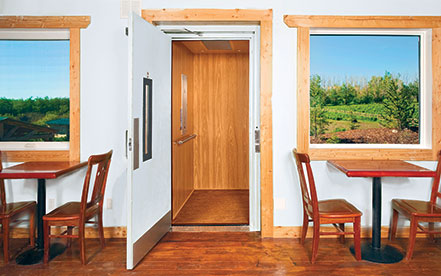

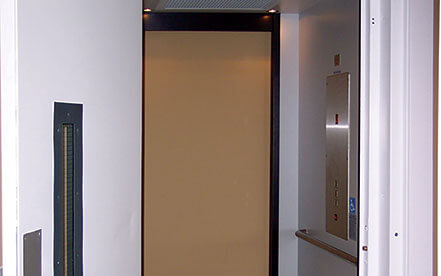

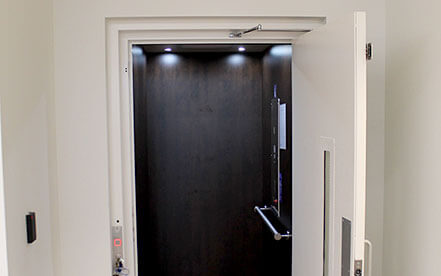

Your Elvoron CPL will be a key feature of your building. Interior design and finish are important considerations. We offer a variety of attractive and durable wall and ceiling finishes as shown below. All lifts are supplied with basic plywood floors ready for installation of your preferred flooring material, as supplied by others.
Entrance Doors

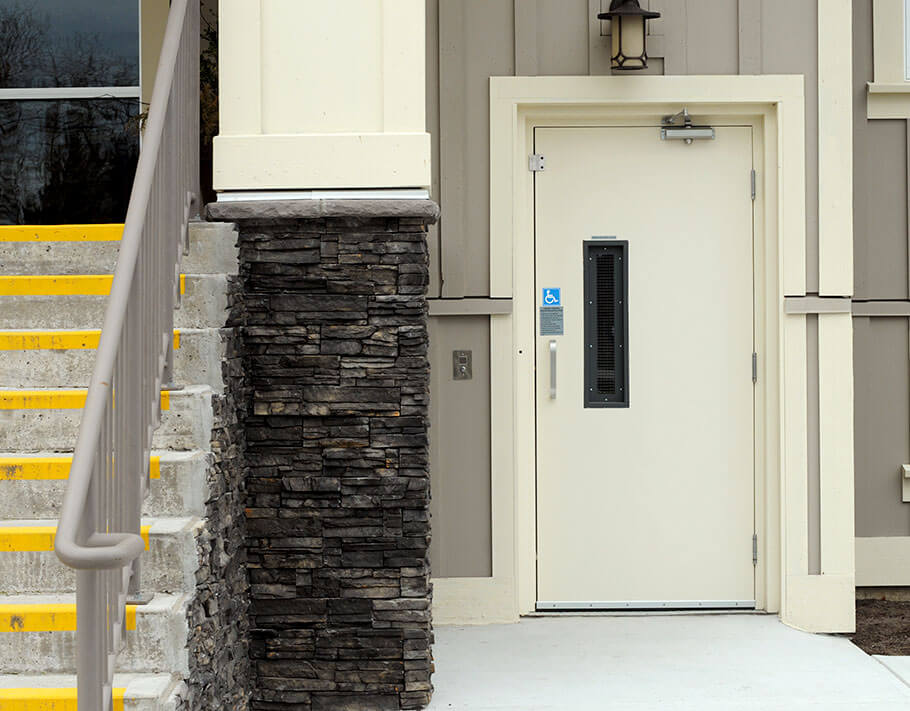

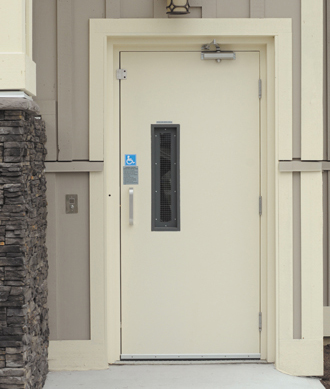

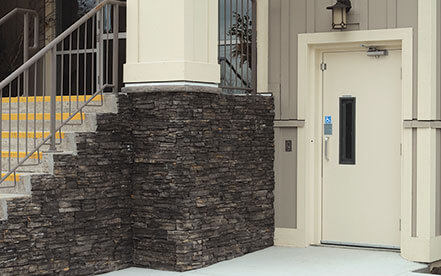

The Elvoron CPL is equipped with fire rated swing doors that are fitted with protective interlocks that allow the doors to open only when the car is at the landing. The doors also include a vision panel and time delay door closer. Optional power door operators are also available. CPL doors are supplied with a primer finish ready to be painted to match your decor.
Ceilings & L.E.D. Lighting

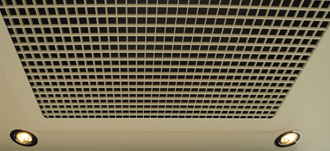

The CPL features a unique egg crate style ceiling as required by national safety codes for vertical platform lifts equipped with full height cabs. The perimeter of ceiling is fitted with 4 low voltage L.E.D. lamps that illuminate automatically. This perimeter ceiling area is available in white.
Handrail Choices
All Elvoron cars are equipped with one handrail on the control wall. The handrails are available in one standard finish or can be customized. Additional handrails can be mounted on the other car walls for extra passenger security.
